Internal Services

# Overview

The Internal Services system consists of a kubernetes controller (running on an internal, private cluster) that is capable of watching and reconciling custom resources on a remote, public cluster. These custom resources describe which pipelines and parameters to use to execute internal jobs on an internal, private cluster. The results and outcome of the pipeline are added as an update to the custom resources. The remote, public cluster watches these resources to determine the outcome.

# Goals

• The Internal Services system attempts to enable execution of internal jobs via a polling mechanism.
• The Internal Services system provides execution results back to the requesting cluster.

# System Context

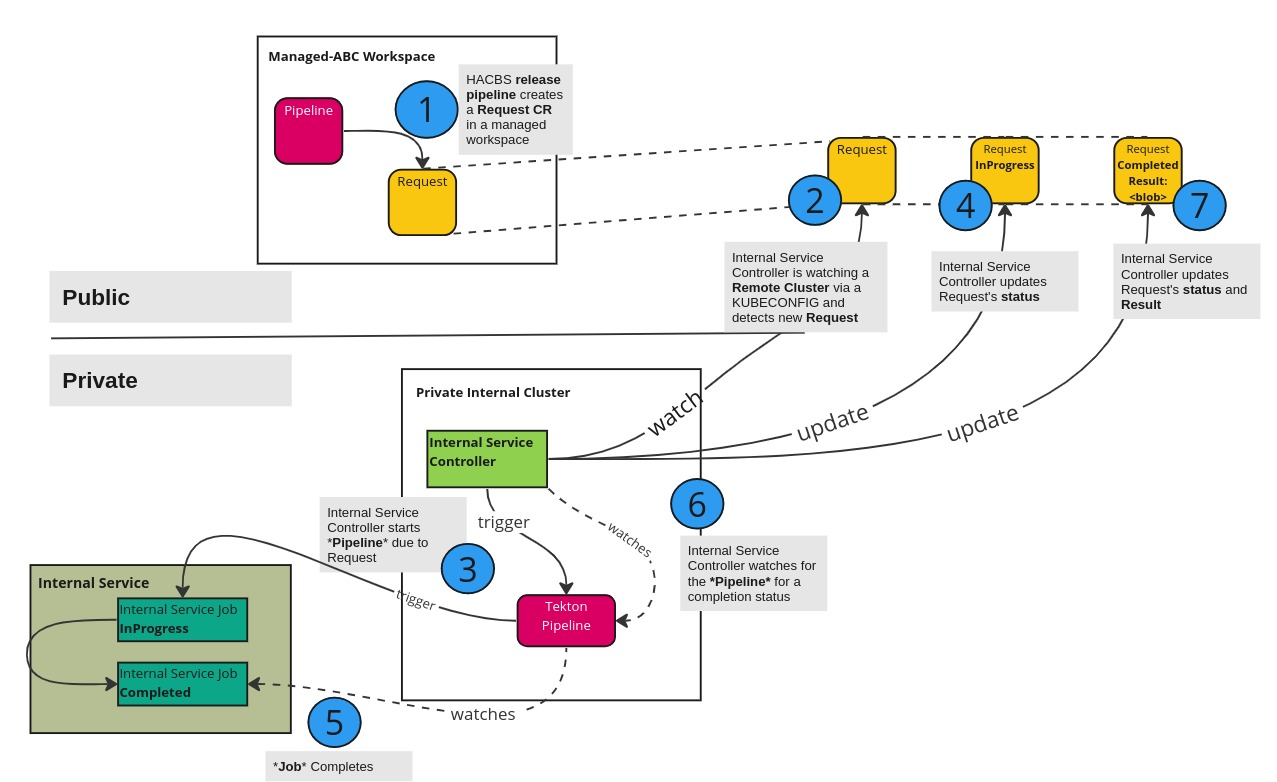

The diagram below shows the interaction of the internal services controller and the Release Service and shows the flow of custom resources

# Terminology

• InternalRequest - The custom resource that describes the internal service to trigger the internal job on.
• Remote Cluster - A public, Konflux cluster residing outside a private network.
• Internal, Private Cluster - A cluster that is not externally addressable but which has access to a private network.

# Resources

Below is the list of CRs that the Internal Service is responsible for interacting with:

# CREATE

# READ

# UPDATE

# WATCH

# Samples

apiVersion: appstudio.redhat.com/v1alpha1
kind: InternalServicesConfig
metadata:
  name: config
  namespace: internal-services
spec:
  allowList:
    - managed-team-1-tenant
    - managed-team-2-tenant
  debug: false
  volumeClaim:
    name: pipeline
    size: 1Gi

apiVersion: appstudio.redhat.com/v1alpha1
kind: InternalRequest
metadata:
  name: example
  namespace: default
spec:
    request: "internal-system-abc-pipeline"
    params:
        foo: quay.io/redhat-isv/operator-pipelines-images:released
        bar: sha256:dd517544390c4c9636a555081205115a2fd3e83c326e64026f17f391e24bd2e5

# Security Risk Mitigations

Enabling remote, public clusters the ability to run internal jobs carrying certain security risks:

• A user or a pipeline may attempt to run an internal job that it is not permitted to.
• A user or a pipeline may attempt to run an arbitrary job

The following list describes measures in places to mitigate those risks.

• The creation of an InternalRequest custom resource requires permission on the Remote Cluster.
• The Internal Services controller instance is configured to watch a specific cluster.
  • This cluster is provided to the controller as an argument to a secret that was added by the admin team.
  • The secret contains a KUBECONFIG file.
• Only Pipelines that are defined and exist within the controller’s namespace can be executed on the internal, private cluster.
• The Internal Services controller only watches and acts on remote namespaces that are specifically allowed in the Config custom resource.

# Detailed Workflow

The following bullet points are numbered to align with the diagram displayed in the System Context section above.

1. A InternalRequest CR is created by a pipeline run by a service account on the remote, public cluster as part of a pipeline.
   • The spec.request should reference the pipeline to execute.
   • The spec.params should reference the parameters to pass to the pipeline.
2. The InternalRequest CR is noticed by the Internal Services controller and attempts to reconcile it.
3. The Internal Services controller verifies whether the remote namespace is allowed in the InternalServicesConfig CR.
   • If it is not allowed, the Internal Services controller updates the InternalRequest CR with an invalid status and a rejection message and stops reconciling.
   • If it is allowed, a PipelineRun is created based on the Pipeline name found in the spec.request and parameter values found in spec.params from the InternalRequest CR.
4. The remote InternalRequest CR is updated by the Internal Services controller to mark as in-progress.
5. The internal job encapsulated by the Pipeline completes.
6. The PipelineRun is watched by the Internal Services controller.
7. Upon completion, the Internal Services controller updates the status section of the remote InternalRequest CR
   • The remote, public cluster calling pipeline sees the update to the status of the InternalRequest CR and continues its execution.
   • By default, PipelineRun CRs are deleted once completed.
     • There are only preserved if an admin has set the InternalServicesConfig CR spec.debug to true
