Architecture Of Konflux

Release Service

# Overview

The Release service is composed of a Release Operator that can create and orchestrate release pipelines defined in Release Strategies to deliver content.

The main API that is exposed is called the Release custom resource. This custom resource is used by the Release Service as input to request a release of content for an Application.

Additional custom resources are used to compose the system. ReleasePlan and ReleasePlanAdmission define the relationship between Development Workspaces and Managed Workspaces.

Release Strategies are referenced in ReleasePlanAdmissions and are used to define which pipeline should be executed to deliver content.

In addition, the Release service ensures that no violations in the Enterprise Contract exist prior to releasing content.

# System Context

The diagram below shows the interaction of the release service and other services.

# Application Context

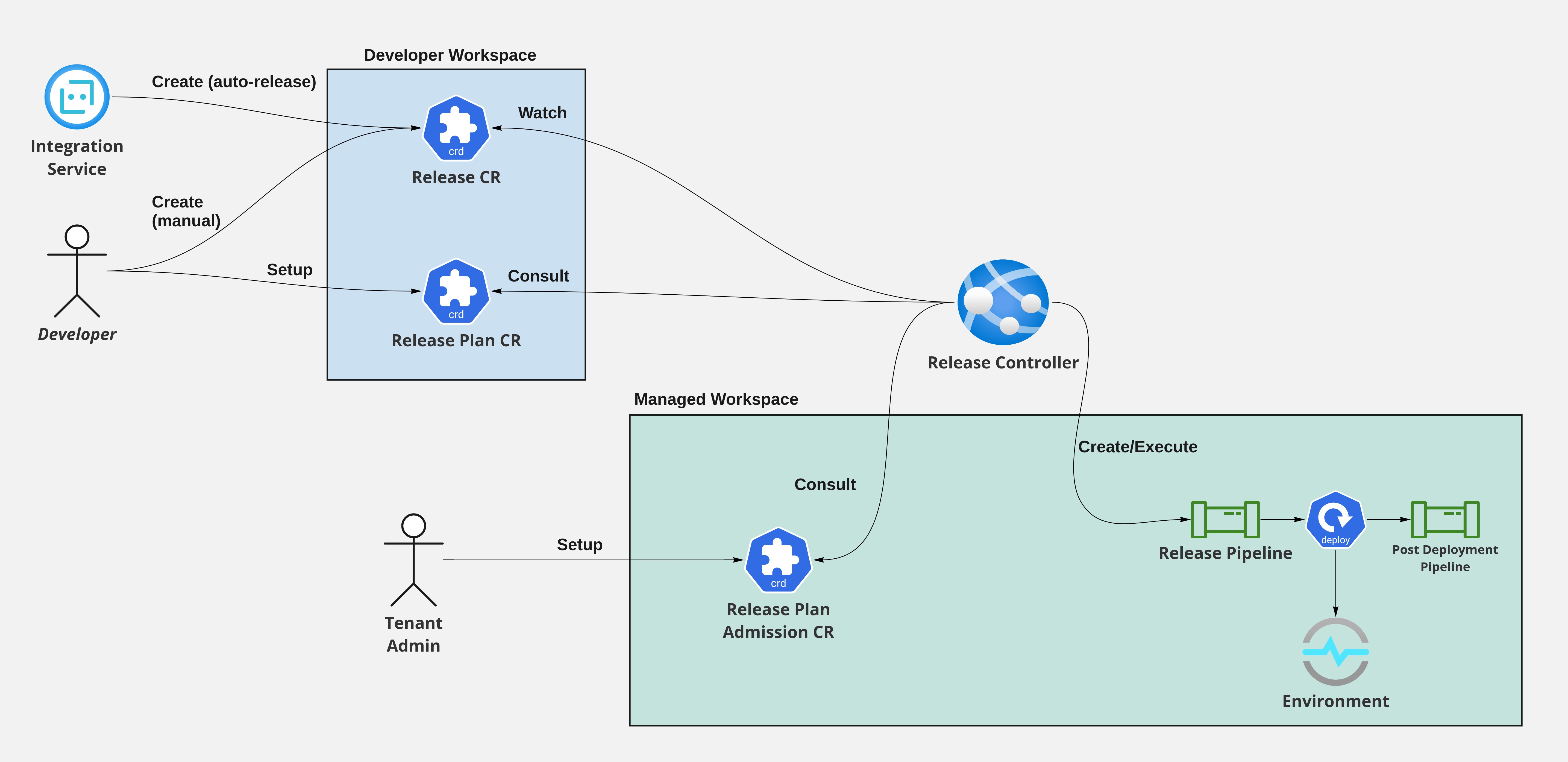

The diagram below shows the flow of custom resources and the orchestration of pipelines by the release service.

# Terminology

Snapshot - The custom resource that contains the list of all Components of an Application with their Component Image digests. Once created, the list of Components with their images is immutable. The Integration service updates the status of the resource to reflect the testing outcome. Release Pipeline - An instance of a Pipeline that is orchestrated by the Release Service. Bundle - A tekton bundle (image) that contains Tekton resources. Development Workspace - A workspace shared by 1 or more team members when code is built and tested. Managed Workspace - A controlled workspace that is managed by an SRE or Release Engineering team. This is where Release Pipelines execute.

# Resources

Below is the list of CRs that the Release service is responsible for interacting with:

# CREATE

Custom Resource When? Why?
SnapshotEnvironmentBinding When deploying the Snapshot to an Environment To create a SnapshotEnvironmentBinding for the referenced Environment when one does not exist
PipelineRun Once a Release has been composed and is ready for execution To perform the steps in the Release Pipeline

# READ

Custom Resources When? Why?
Application & Component When validating ReleasePlans and ReleasePlanAdmissions To ensure data consistency
ReleasePlan When starting to process a Release To determine the target workspace to run the Release Pipeline in
ReleasePlanAdmission When starting to process a Release To determine how to compose the Release Pipeline
Snapshot Creating and triggering a Release Pipeline To determine which components to release

# UPDATE

Custom Resource When? Why?
SnapshotEnvironmentBinding When deploying the Snapshot to an Environment To update existing SnapshotEnvironmentBinding for a new Snapshot
Release During the lifecycle of an attempt to release a Snapshot To provide status for the execution of the Release Pipeline

# WATCH

Custom Resource When? Why?
Release Always To provide an API to trigger a release
PipelineRun Once the PipelineRun is created To relay the Release PipelineRun status to the Release for viewing
SnapshotEnvironmentBinding After the SnapshotEnvironmentBinding is created or updated To relay the GitOps deployment status to the Release for viewing

# Annotations/Labels

Following the annotation guidelines, the Release Service sets the below annotations on PipelineRuns.

“pipelines.appstudio.openshift.io/type":     "release",
“appstudio.openshift.io/application":        “<application name>”,
"release.appstudio.openshift.io/name":       "<release name>",
"release.appstudio.openshift.io/namespace":  "<development workspace name>"

The Release service will copy the annotations and labels from the Release CR and append those to the Release PipelineRuns for traceability across the system per Labels and Annotations for StoneSoup pipelines and StoneSoup builds and tests PRs.

# Detailed Workflow

  1. A Release CR is created automatically by the Integration Service or manually by a user.
    • The spec.snaphot should reference the Snapshot to release.
    • The spec.releasePlan should reference the ReleasePlan to use.
  2. Find the matching ReleasePlanAdmission in the spec.target namespace specified in the ReleasePlan.
  3. Extract the spec.pipelineRef, spec.serviceAccount, spec.policy from the ReleasePlanAdmission
  4. Create a Release PipelineRun using the above info.
  5. Watch Release PipelineRun and update Release status with progress and outcome.
  6. If ReleasePlanAdmission specified a spec.environment, then do the following:
    • Copy the Snapshot to the managed workspace.
    • Verify that the Application and Components have been copied to managed workspace.
    • Create or update SnapshotEnvironmentBinding in the managed workspace.
    • Watch SnapshotEnvironmentBinding to relay deployment status to Release CR status.

# Dependencies

The Release Service is dependent on the following services:
